MIG Welding Helmet Review

For the part-time hobbyist, selecting a MIG welding helmet is a compromise of function and price. We need one to be safe and comfortable, but also fit our budget. And admittedly, some of us don't mind paying a little more for appearance as well.

best MIG welding helmet for restoring cars

Reaction Time

Auto-darkening helmets have different sensitivities to brightness. This is the amount of time it takes for the filter to switch from light to dark mode. The cheaper helmets don't have as fast a response time as the more expensive ones do. This correlates to your eyes getting sore during longer welding sessions.

Viewport Size

To keep production costs as low as possible, inexpensive helmets will have a small viewport size. One example is the Antra AH6-260-0000 which sells for under $50.

auto darkening welding helmet

Although a large viewing screen is a nice feature, they come with a higher price tag. Commercial-grade welding with large viewing lenses include the Miller Infinity and the Lincoln Viking 3350. Both are over the $200 mark.

best MIG welding helmet for restoring cars

Helmet Weight And Comfort

If you're planning on welding for hours at a time, helmet weight should be a factor in your buying decision. All welding helmets have an adjustable inner headband that allow you to make headgear adjustments, and most will have a cushion for your forehead as well.

Grinder Mode

Most auto-darkening helmets will have a grinder mode, which disables the auto-darkening feature. This is helpful when grinding metal or working outdoors.

repair rust on old car

Overhead Welding

The overhead welding position brings the potential of hot slag going through the helmet and onto the user. This is not much of a concern for the classic car hobbyist, as most of our welding will be in the horizontal position. Of course, wearing a welders cap under your helmet will help prevent stray sparks from reaching your skin.

Parts Availability And Warranty

Other things to look for in a welding helmet are availability of additional parts, such as replacement lenses and "cheater" lenses. Most companies will offer a one-year warranty policy, but the better brand helmets will carry a two or three year warranty.

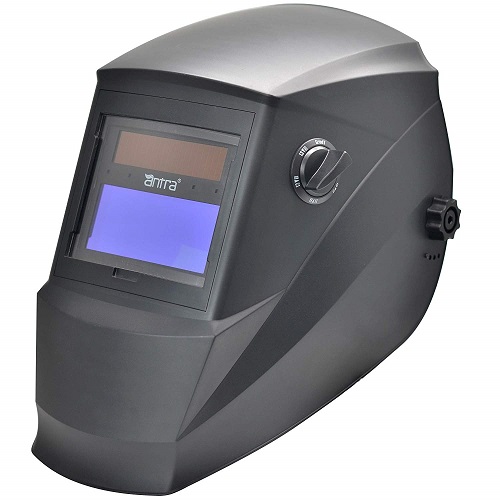

Antra Welding Helmet

Because of it's price point, the Antra AH6-260-0000 is one of the most popular welding helmets out there. Features include a battery indicator and tester as well as a power-off delay. The filter remains active for ten minutes in dark environments before it goes to sleep.

  • Viewing Size: 3.86" x 1.73"
  • Shade Range: 4/5-9/9-13
  • Weight: 16.5 ounces

The Antra helmet comes with a one year warranty and is available in several different color options. It is magnifying lens compatible and comes with a useful hard hat adapter. Suitable for use with MIG, TIG, Arc, and grinding.

best budget welding helmet

Shop: Antra Auto Darkening Welding Helmet

For the beginning welder, the Antra is a good first helmet for the money. It's made of thin plastic so it's very light, but because of that, it's not going to be industrial rated. If you need a helmet for anything more than occasional hobby welding, you're better off looking elsewhere.

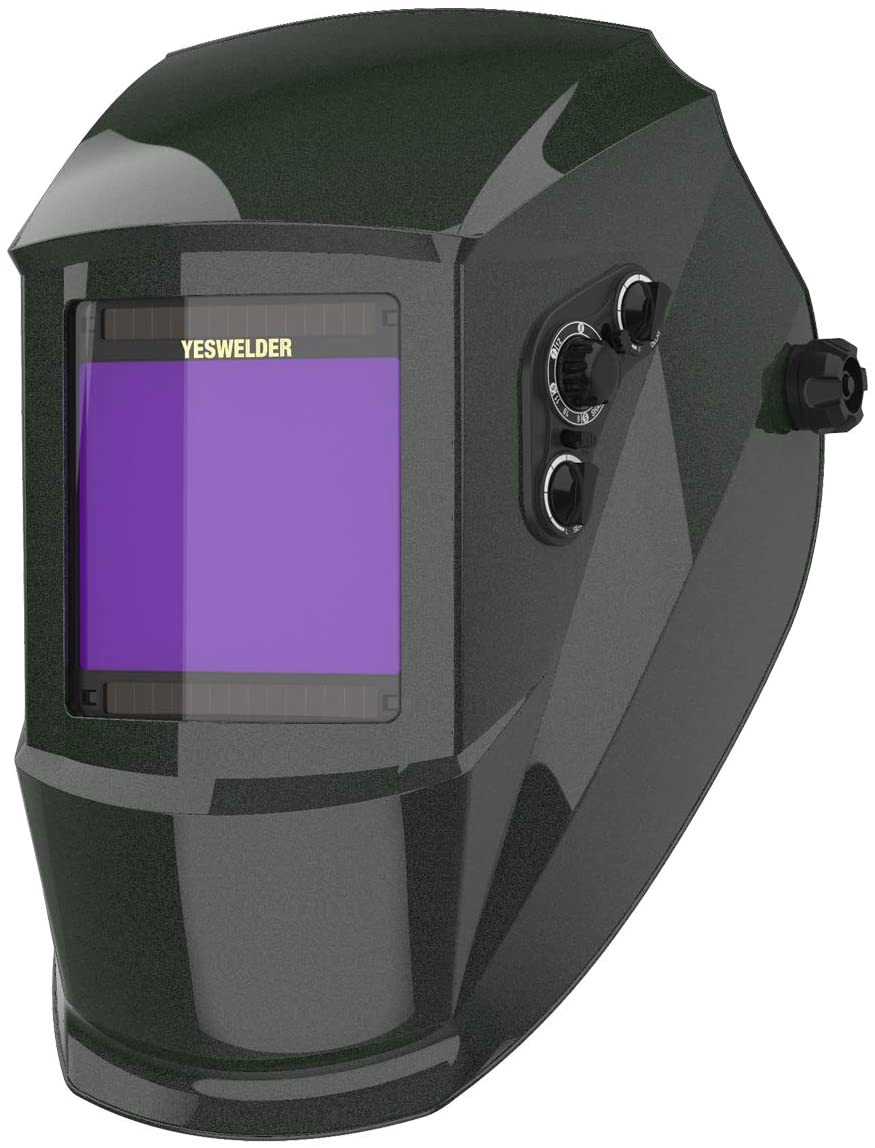

YesWelder Large View

The YesWelder EH-091X "True Color" welding helmet features a large viewing screen as well as solar power. Over-sized controls make it easy to set with gloves on.

  • Viewing Size: 4.0" x 3.7"
  • Shade Range: 4/9-9/13
  • Weight: 2.2 pounds
MIG welding helmet

Shop: YesWelder True Color Large Viewing Screen

Some consumers state that the "true color" aspect takes some getting used to. Some say it's not dark enough, but once the initial adjustment is made, it allows you to see more of the work.

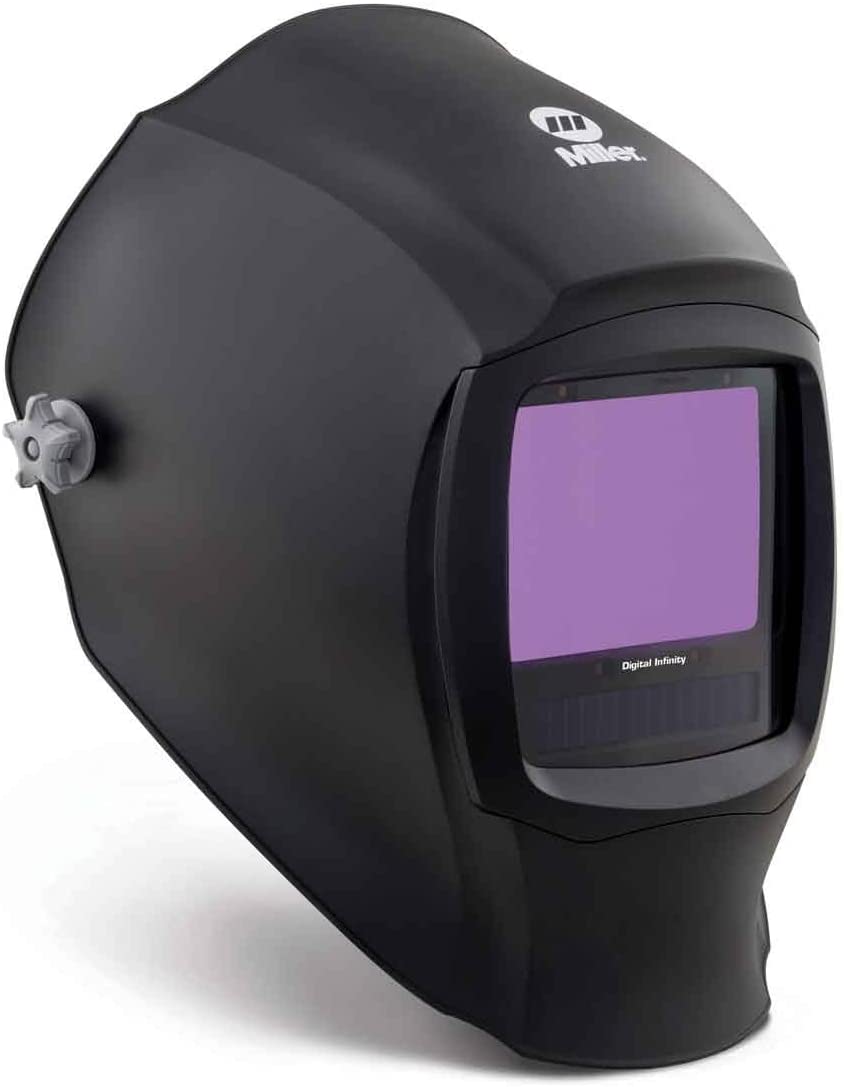

Miller Infinity

Miller's "ClearLight" Lens Technology allows more colors of the light spectrum to come through the lens for a more natural-looking view. Four independent arc sensors provide superior lens response for obstructed or low amp welding. There are four operating modes - weld, cut, grind, and x-mode.

best MIG welding helmet
  • Viewing Size: 13.4 square inches
  • Transition Time: 1/20,000 of a second
  • Weight: 2.99 pounds
MIG welding helmet

Shop: Miller Infinity Series Welding Helmet

The large lens is 13.4 square inches, making it one of the industry's largest viewing areas. All Miller Digital Infinity helmets are backed by a three-year warranty.

Miller Performance Series

Underneath the Infinity series in price is the Miller Elite series, which has all the same functionality but smaller viewing area and it's a bit lighter.

Below the Elite series is the Miller Performance Series, which is my present welding helmet. The lens size is 3.85" x 1.85" and the weight is 17 ounces. It has shades of 8 to 13 and has a grinding mode.

MIG welding helmet

Shop: Miller Performance Auto Darkening Welding Helmet

I bought this helmet new in 2012 and it still performs very well. There are three arc sensors, and three operating modes: weld, cut, and grind. It's nice and roomy, and I can wear my eyeglasses underneath it.

Safety Concerns

Professional welders are staring at welding arcs for hours at a time, so they need the best protection for their eyes and skin. For occasional use hobby welders, prolonged exposure should still be a major concern, especially when using lighter shades. Be aware that prolonged exposure causes arc burn and even blindness.

Conclusion

If you weld for an hour or two at a time, an inexpensive lightweight helmet will most likely fit your needs. But if you see yourself welding more often, and for many years to come, consider investing in a better quality, name-brand helmet.
