389 Pontiac Engine Build
Article by Mark Trotta
This article is a short review of the 389 motor I rebuilt from my 1965 GTO. Before I bought the car, I had it documented by Pontiac Historical Services. A copy of the factory build sheet showed it was an original Tripower car.
Produced from 1959 to 1966, the Pontiac 389 engine was offered in a multitude of performance packages. It is probably best known for it's Tripower option, which was optional on GTO's from 1964 through 1966.
When the modern Pontiac V8 was introduced in 1955, it displaced 287 cubic-inches. Over the next 15 years, displacement increased several times, but external dimensions remained about the same. Parts interchange is pretty good, but do your homework before swapping parts. Bore and stroke on the 389 is 4.06" x 3.75".
____________________________________________
____________________________________________
Besides a variety of displacements, Pontiac V-8 blocks saw a number of other changes over the years, including starter locations, main-journal diameters, engine-mounting points, and transmission bell-housing bolt patterns.
***************************
389 Engine Build
Once the motor was out of the car and secured onto the engine stand, the engine overhaul began with cleaning and disassembly. This was followed by careful inspection and measuring of internal components.
Cylinder Bores
The cylinder bores measured .040" over, so it had been previously apart and rebuilt. There were no ridges on the top of the cylinder walls, and since all eight bores were in allowable tolerance, honing and re-ringing the pistons was in order.
***************************
Engine bolts and bolt threads were cleaned and tapped.
Read: Engine Bolt Thread Cleaning
***************************
389 Bottom End
After inspecting the pistons and connecting rods for wear, the crankshaft was measured and showed .010" under stock on both the main and rod journals. Although within tolerance, new bearings were purchased and installed.
While the crank and rods were at the machine shop being balanced, the cylinder bores were honed.
Rear-Main Rope Seal
Having previously rebuilt a 400ci motor from a 1969 Firebird, I was aware of the tricky two-piece rear-main rope seal. Installing it so it doesn't leak requires one side to be tucked slightly in and the other side sticking slightly out of it's cap. Same thing for the other half of rope seal in the other cap.
After the main bearings were checked for proper clearance with Plastigage, the bearings were lightly lubed and set into the block and main caps.
***************************
Is Plastigage Accurate?
For checking bearing clearances during engine assembly, Plastigauge is an accurate, inexpensive alternative to verniers and micrometers.
Shop: Plastigage
Green Plastigage Measures .001" to .003"
Red Plastigage Measures .002" to .006"
The crankshaft gets torqued down to 100 lb/ft for the front four journals, and 120 lb/ft for the rear journal.
***************************
389 Oil Pump
For the oil pump, a TRW #50049 high-pressure unit was chosen.
389 Pistons and Rings
Piston rings were checked in their prospective bores before being installing on pistons. Top rings were gapped at .016" and the second rings at .013".
Shop: Piston Ring Pliers
After the pistons and rods were in, the rod bolts were torqued to 45 ft/lbs.
***************************
Tri-power Camshaft Choices
Two different camshafts were used for 1965 GTO engines. A 4-barrel carburetor motor used cam #9779067 (stamped "P"). Tri-power engines used #9779068 (stamped "S").
The 1966 Tri-power camshaft is #9785744 and is stamped "H".
The #9779068 cam was selected. It was also fitted to 421 HO engines and several Ram-Air III applications. Camshaft lift (at 1.50:1) is .407" intake and .447" exhaust. Duration at .050 lift is 288 degrees. Stock lifters will work fine up to 6,000 rpm. Recommended adjustment is .010" tighter than zero lash.
Read: Best Engine Assembly Lube

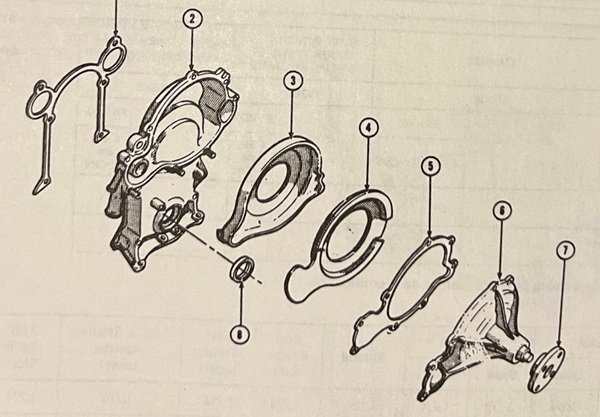

After lubing and carefully installing the cam, a new double-roller timing chain was fitted. The cam gear was set to "0" degrees.
***************************

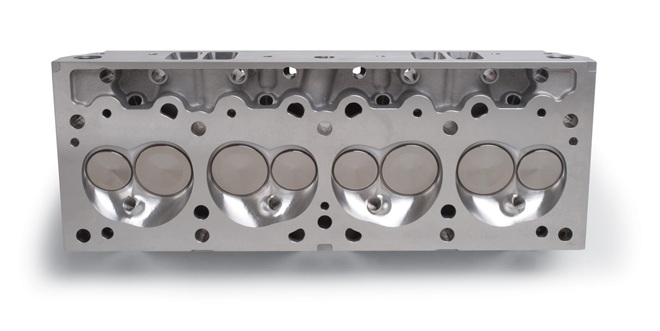

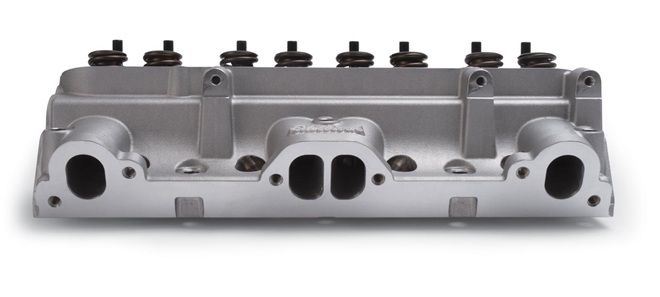

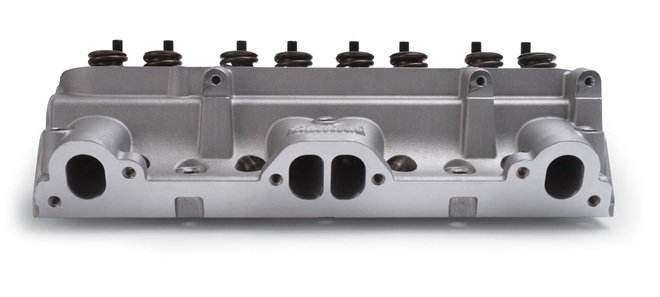

389 Cylinder Heads (1965-1966)
Correct cylinder heads for the 1965 389 GTO are cast #77 and have 1.96" intake/1.66" exhaust valves. For 1966, most GTO models had a cast #093 head. California-bound GTO's in 1966 had different cylinder heads with an internal air galley.
____________________________________________
____________________________________________
Pontiac 400 Heads
When Pontiac increased engine displacement from 389 to 400 cubic-inches for 1967, the cylinder heads were redesigned and featured larger valves (2.11" intake and 1.77" exhaust). They were better breathing than earlier heads, and made more power.
Early vs Late Pontiac Heads
Pontiac V8 heads from 1967-up have a different valve angle from earlier heads, and require longer pushrods and different rocker arms. 1967 and up valve covers were redesigned to clear the new valvetrain geometry (earlier valve covers won't fit).
In stock trim, the 1965 GTO 389ci Tri-power motor was rated at 360 horsepower. In a properly prepared car, that was good for 14-second quarter-mile times. But I wanted to have a little more power.
400ci Heads On 389ci Block
The 389 heads that came with the 1965 GTO were not correct, nor were they in good shape. After doing a little research, I found a pair of 1969 Ram-Air 3 heads (cast #16), which have the large valves and better breathing. They fit on the 389 block with no problems and will work fine, providing you use push rods, rocker arms, and valve covers for the 1967-up Pontiac 400 motor.
By using Ram-Air III heads on the 389 block, the factory Tri-power engine output of 360 horsepower is significantly higher.
***************************
Painting A Cast-Iron Engine
Applying a few coats of paint to a rebuilt engine provides protection as well as good looks. To get paint to properly adhere to a cast-iron, the metal must be clean and dry.
The 389 motor was painted Pontiac "Robins Egg Blue" from a spray can.
Read: Spray Paint Engine
***************************
Engine Bolt Torque Specs
Pontiac V8's have just ten head bolts, so correct torquing is critical. They are to be tightened to 90 lb/ft in 20 pound intervals.
On hydraulic cam Pontiac V8's, rocker arms are adjusted by tightening them to 20 lb/ft.
Intake manifold bolts get tightened to 40 lb/ft in 10 pound intervals.
***************************
Completion
After the Tri-power carbs were rebuilt and reinstalled, the GTO engine looked, sounded and ran great. The #068 cam gives a nice lumpy idle and all the torque you'd ever need for a street-driven car.
***************************
